High Transparent Nylon 12 Material UV Resistant Plastic Glasses Frame

Ask Lasest Price
Brand Name :	EMS
Model Number :	PA12 TR-90
Certification :	Ocean freight appraisal report
Price :	USD9-10KG
Payment Terms :	T/T
Supply Ability :	500TONS
Delivery Time :	7-15days

Add to Cart

Product Details
Company Profile

High Transparent Nylon 12 Material UV Resistant Plastic Glasses Frame

Products Description

High Transparent Nylon 12 Material UV Resistant Plastic Glasses Frame

PA12 Swiss EMS TR-90 high transparent UV resistant glasses frame material nylon 12 plastic products

PA12 TR-90 has high transparency super toughness high melting point, can withstand high temperature and low temperature environment extremely high environmental performance can be used in the field of food contact glasses manufacturing field can also be used to make contact lens care box, sports shoes, bicycle frame, fishing rod, headphones, car lampshade and other products. With its anti-distortion and super-strong impact resistance, these products have more excellent durability and applicability during use.

product feature

PA12
TR 90

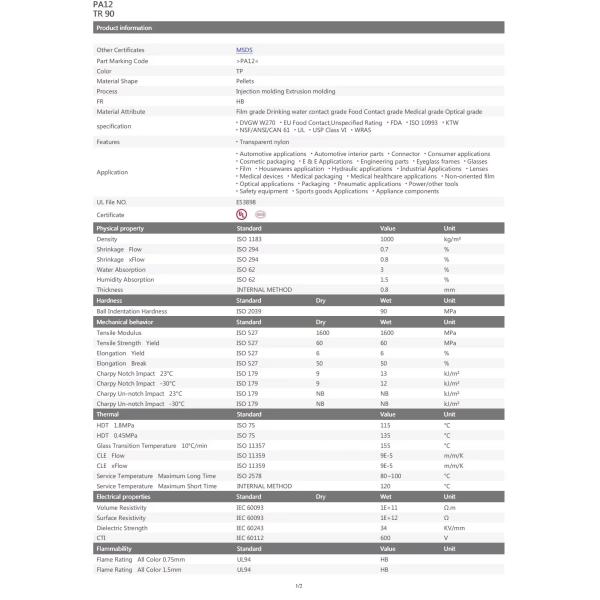

Product information
Other Certificates	MSDS
Part Marking Code	>PA12<
Color	TP
Material Shape	Pellets
Process	Injection molding Extrusion molding
FR	HB
Material Attribute	Film grade Drinking water contact grade Food Contact grade Medical grade Optical grade ·DVGW W270·EU Food Contact,Unspecified Rating·FDA·ISO 10993·KTW ·NSF/ANSI/CAN 61·UL·USP Class VI·WRAS
specification
Features
Application	·Automotive applications·Automotive interior parts·Connector·Consumer applications ·Cosmetic packaging·E&EApplications ·Engineering parts ·Eyeglass frames·Glasses ·Film·Housewares application·Hydraulic applications ·Industrial Applications·Lenses ·Medical devices·Medical packaging·Medical healthcare applications·Non-oriented film ·Optical applications·Packaging·Pneumatic applications ·Power/other tools ·Safety equipment·Sports goods Applications·Appliance components
UL File NO.		E53898
Certificate W MSDS
Physical property		Standard		Value	Unit
Density		ISO 1183		1000	kg/m³
Shrinkage Flow		ISO 294		0.7	%
Shrinkage xFlow		ISO 294		0.8	%
Water Absorption		ISO 62		3	%
Humidity Absorption		ISO 62		1.5	%
Thickness		INTERNAL METHOD		0.8	mm
Hardness		Standard	Dry	Wet	Unit
Ball Indentation Hardness		ISO 2039		90	MPa
Mechanical behavior		Standard	Dry	Wet	Unit
Tensile Modulus		ISO 527	1600	1600	MPa
Tensile Strength Yield		ISO 527	60	60	MPa
Elongation Yield		ISO 527	6	6	%
Elongation Break		ISO527	50	50	%
Charpy Notch Impact 23℃		ISO 179	9	13	kJ/m²
Charpy Notch Impact -30℃		ISO 179	9	12	kJ/m²
Charpy Un-notch Impact 23℃		ISO 179	NB	NB	kJ/m²
Charpy Un-notch Impact -30℃		ISO 179	NB	NB	kJ/m²
Thermal		Standard		Value	Unit
HDT 1.8MPa		ISO 75		115	℃
HDT 0.45MPa		ISO 75		135	℃
Glass Transition Temperature 10℃/min		ISO 11357		155	℃
CLE Flow		ISO 11359		9E-5	m/m/K
CLE xFlow		ISO 11359		9E-5	m/m/K
Service Temperature Maximum Long Time		ISO 2578		80~100	℃
Service Temperature Maximum Short Time		INTERNAL METHOD		120	℃
Electrical properties		Standard	Dry	Wet	Unit
Volume Resistivity		IEC 60093		1E+11	Ω.m
Surface Resistivity		IEC 60093		1E+12	Ω
Dielectric Strength		IEC 60243		34	KV/mm
CTI		IEC 60112		600	V
Flammability		Standard		Value	Unit
Flame Rating AllColor 0.75mm		UL94		HB
Flame Rating All Color 1.5mm		UL94		HB

Application

High Transparent Nylon 12 Material UV Resistant Plastic Glasses Frame

Optical lighting

It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Electronic appliances

It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Mechanical equipment

It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields

Physical Property Parameter

Company Profile:

Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.

Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.

We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.

our Product Range Includes Engineering Materials And General Mater

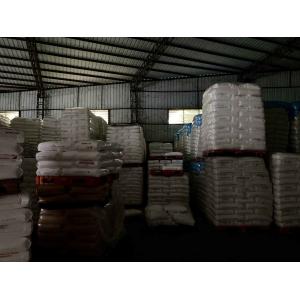

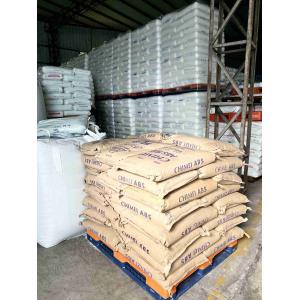

Warehouse:
